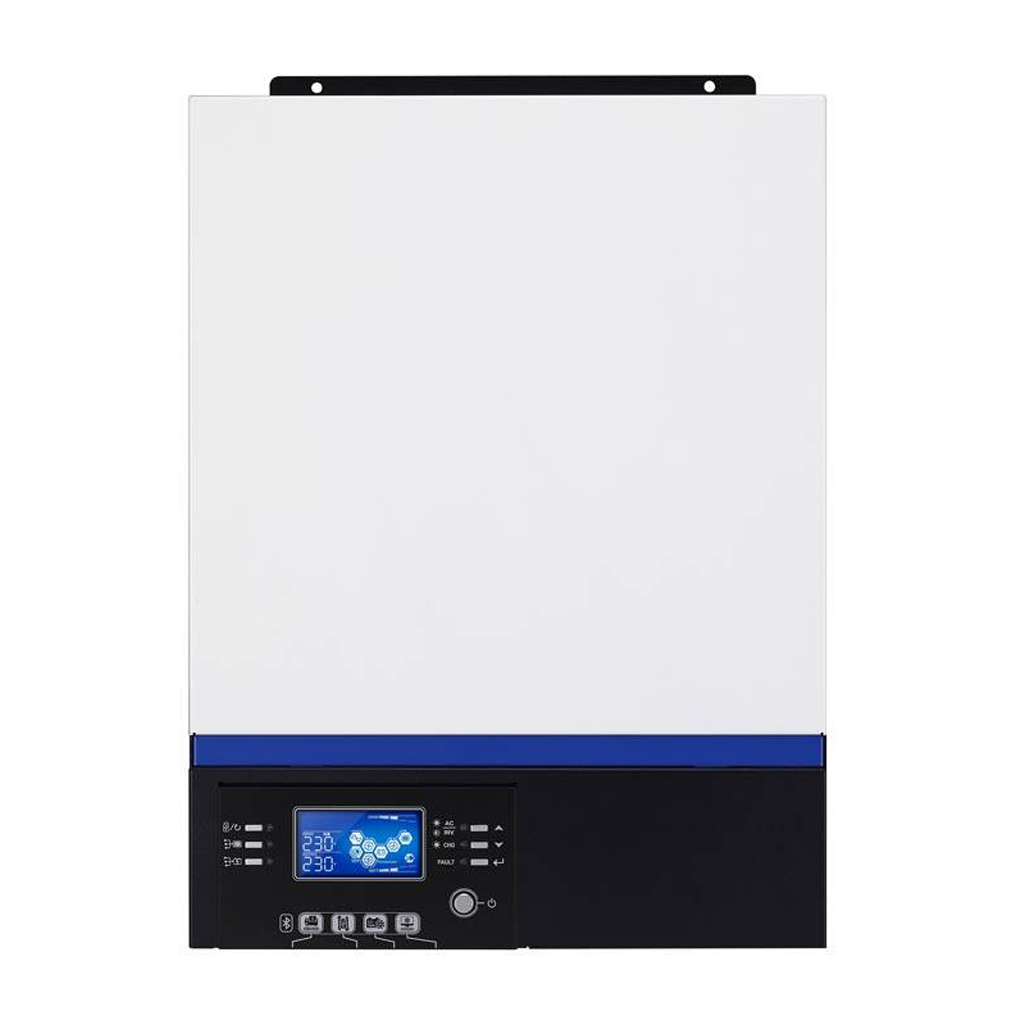

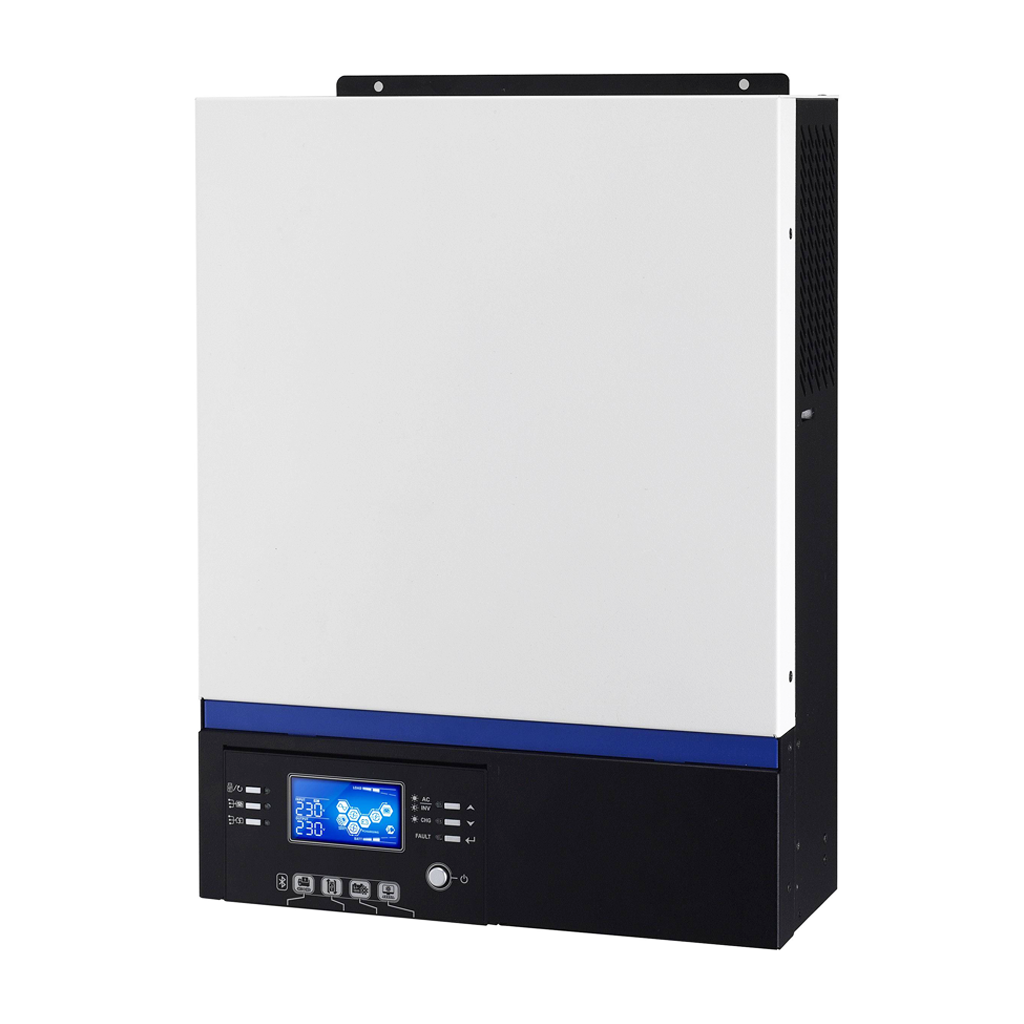

Optimize your solar energy system with the Axpert VM III 3000W 24V off-grid inverter. This advanced inverter is designed to deliver reliable and efficient performance, ideal for off-grid applications. With a host of innovative features, the Axpert VM III ensures you can effectively manage and monitor your energy.
Main Features:
- Nominal Power: 3000W (3000VA)
- Battery Voltage: 24VDC
- Peak Efficiency: 90% - 93%
- Detachable LCD Display: Allows you to control and monitor the inverter from a remote location, up to 20 meters away.
- Integrated WiFi Interface: Monitor your system through mobile apps available for iOS and Android.
- USB On-the-Go Function: Makes it easy to upload and download data.
- Reserved Communication Ports: Includes RS-485, CAN-BUS, or RS-232 for battery system management (BMS).
- Battery Equalization: Extends battery life by optimizing its performance.
- Battery Independence: Can supply power to loads directly from solar or grid power, without the need for a connected battery.
- Intuitive Operation: Easy configuration of charging current, output source and charger source prioritization via the LCD control panel.
- Replaceable Fan Design: Simplifies maintenance and reduces costs.
Technical Specifications:
-
Entrance:
- Voltage: 230 VAC
- Selectable Voltage Range: 170-280 VAC (for personal computers), 90-280 VAC (for household appliances)
- Frequency Range: 50 Hz/60 Hz (Auto-sensing)
-
Exit:
- Voltage Regulation in Battery Mode: 230VAC ± 5%
- Surge Power: 6000VA
- Transfer Time: 15 ms (for personal computers), 20 ms (for household appliances)
- Pure Sine Wave
-
Solar Charger and AC Charger:
- Solar Charger Type: MPPT
- Maximum Power of the PV Array: 2000W
- MPPT Operating Voltage Range: 120~380 VDC
- Maximum Open Circuit Voltage of the PV Array: 400 VDC
- Maximum Solar Charging Current: 60A
- Maximum AC Charging Current: 40A
- Maximum Total Load Current: 60A
-
Dimensions and Weight:
- Dimensions (D x W x H): 100 x 280 x 390 mm
- Weight: 8.5 kg
-
Operating Environment:
- Humidity: 5% to 95% Relative Humidity (non-condensing)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
Connectivity and Communication:
- Communication Interface: USB, RS232, RS485, WiFi, Dry Contact.
